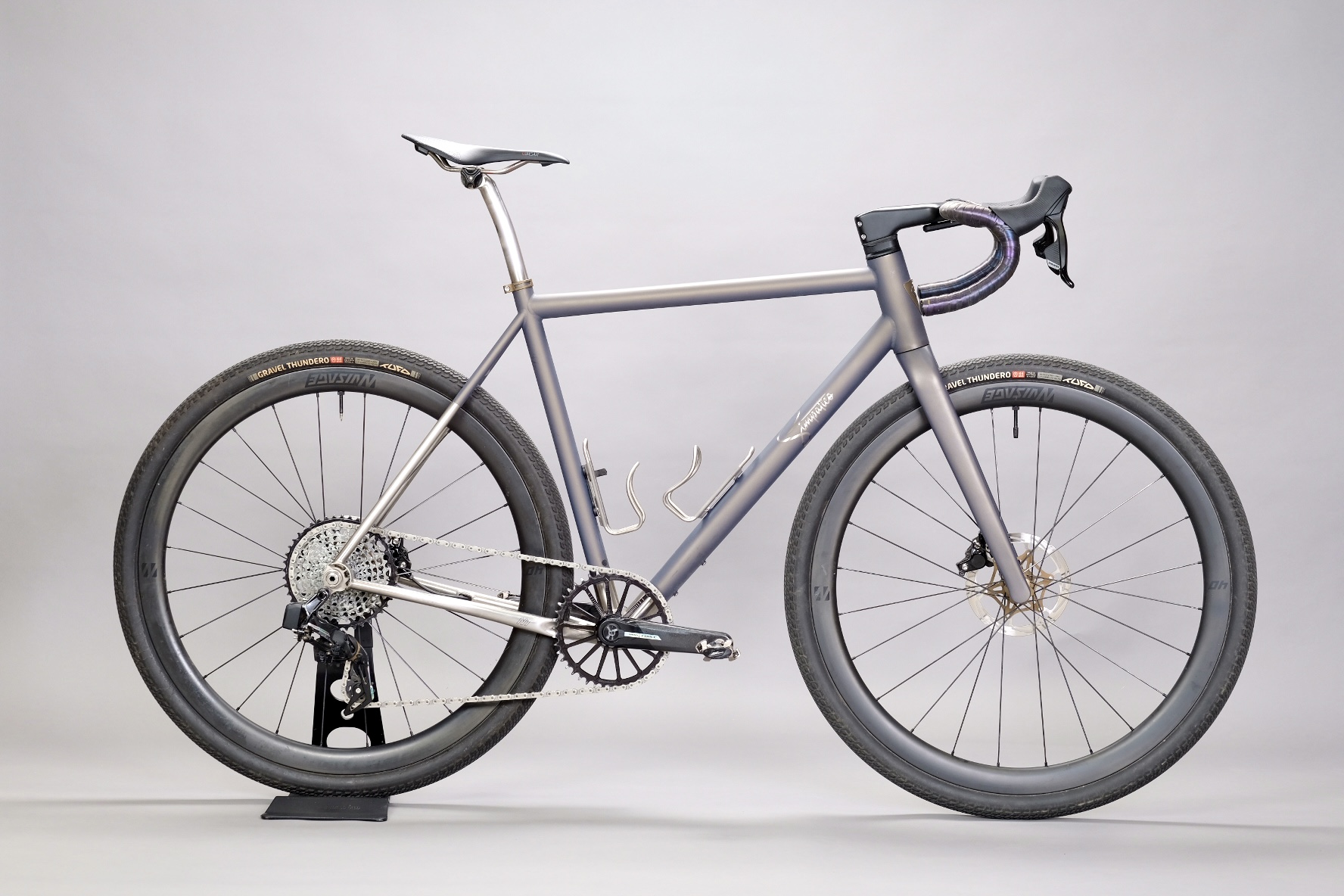

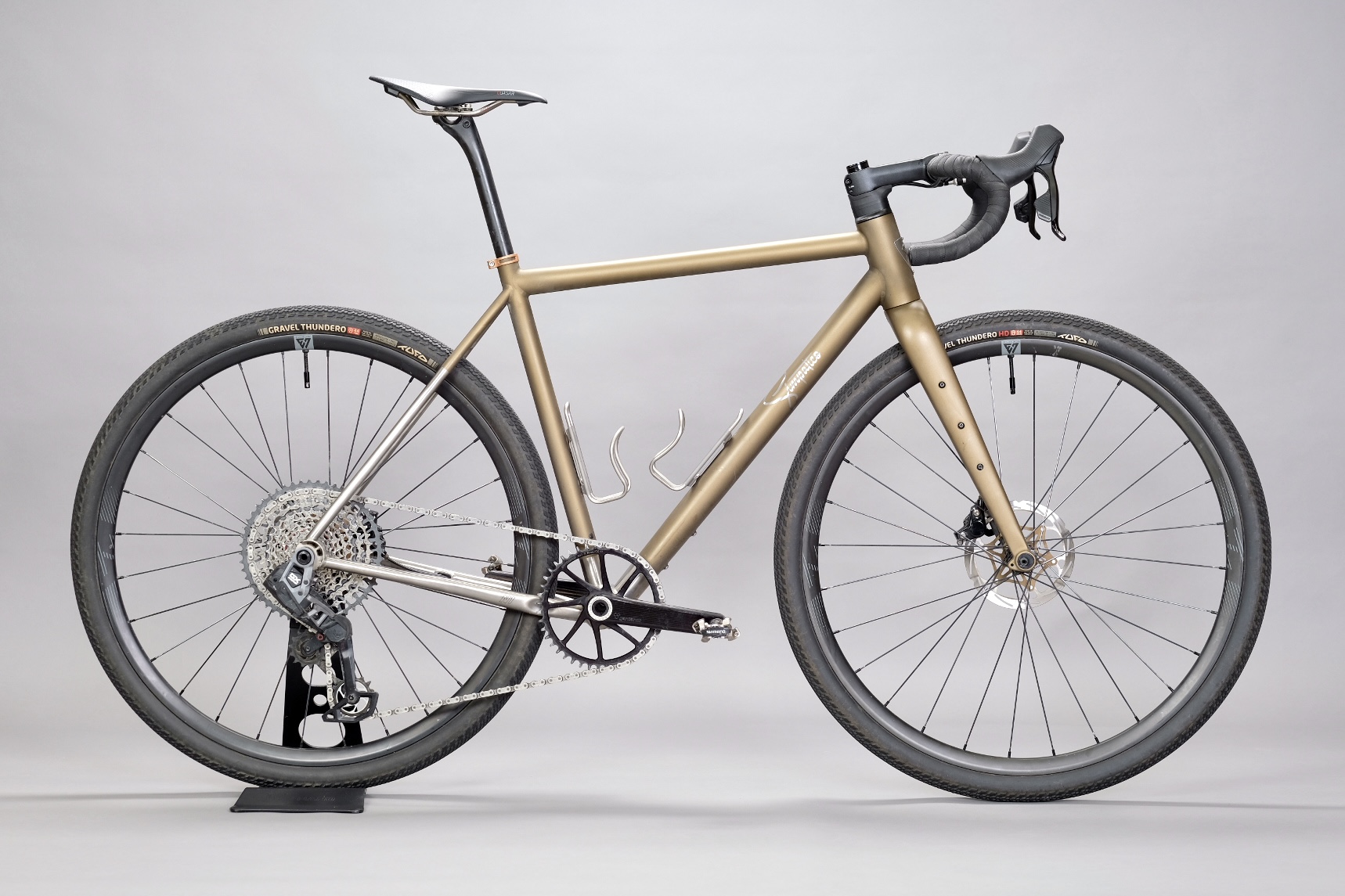

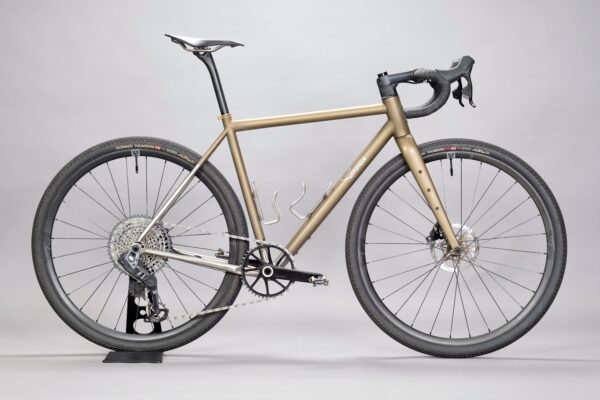

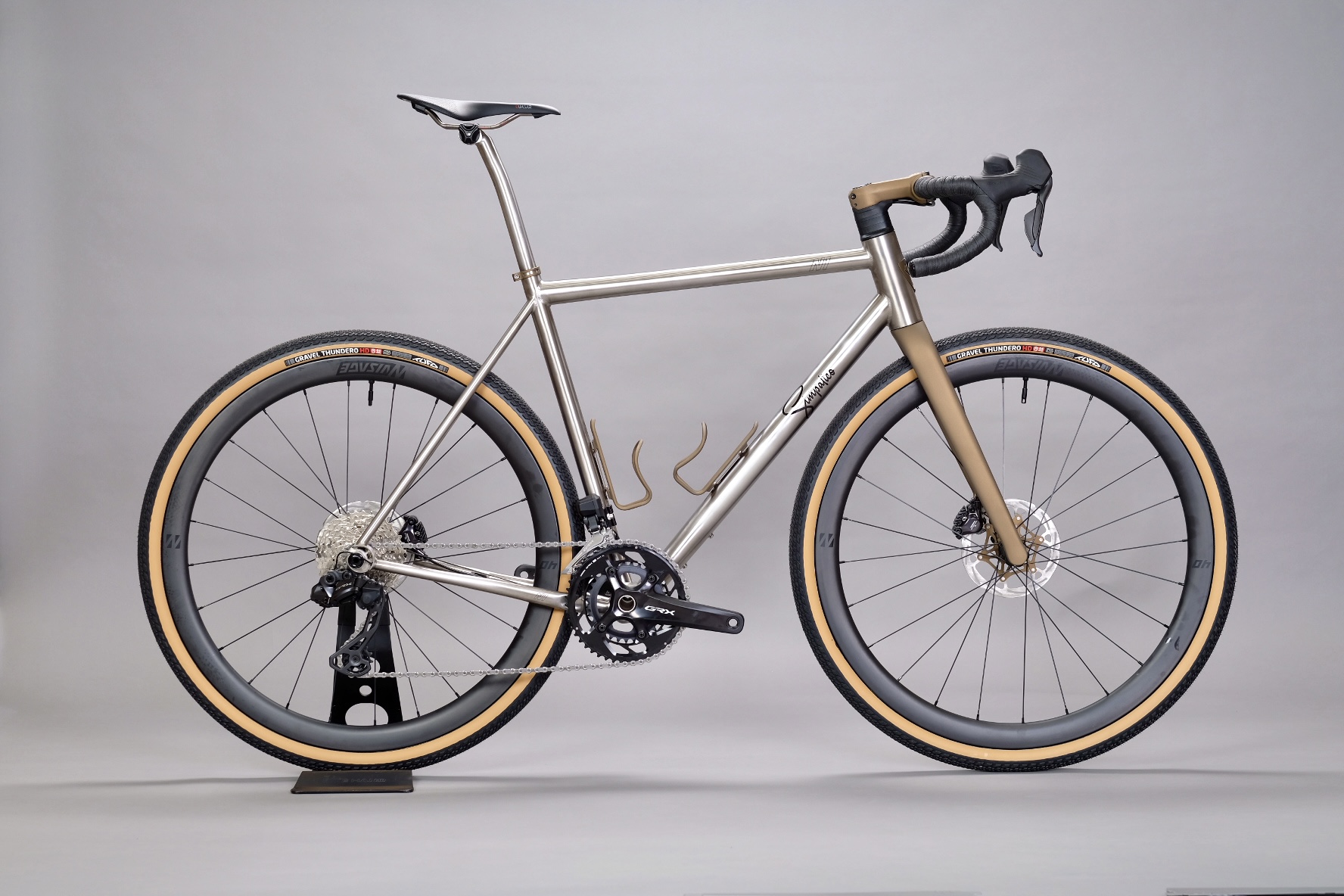

Simpatico N1 Gravel Bike

$9,499.00 AU

*$9499-$15599 depending on selections below

The Simpatico N1 titanium grave bike is built to be fast and agile on gravel, making it ideal for racing down dirt roads or tackling your next gravel challenge. The Simpatico N1 titanium gravel bike is the ultimate choice for those who seek smooth and effortless riding combined with fast and stable geometry.

It is equipped with innovative components that provide an extraordinary riding experience. These features include a T47 bottom bracket that ensures you can pedal creak free, full internal frame cable routing that makes for a clean look, and external cable routing through the stem and bars that guarantees effortless maintenance and adjustment. Additionally, the UDH derailleur hanger offers versatility and future compatibility.

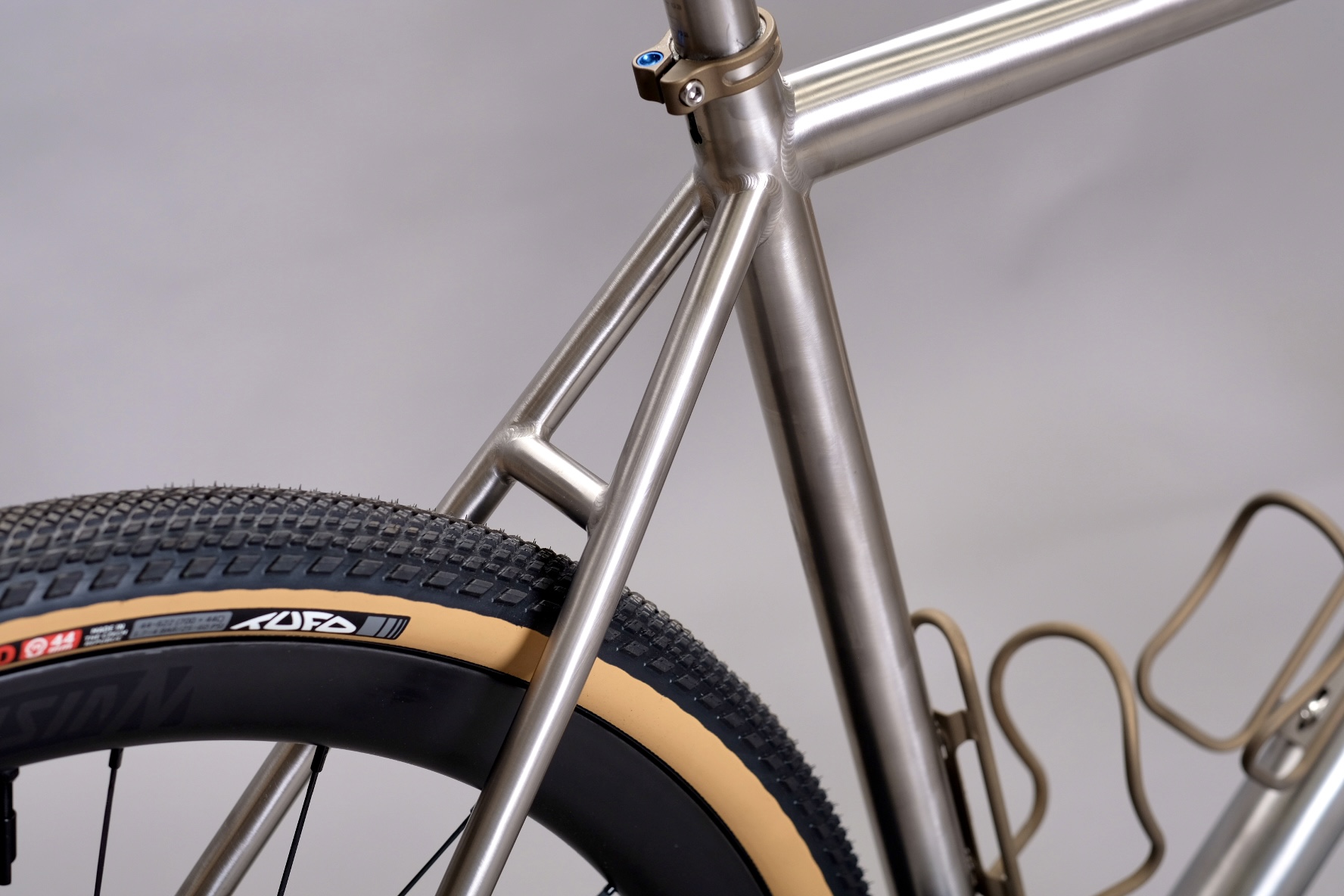

Featuring clearance for 700×45 tyres  with 2x and 700×48 with 1x and clearance to boot, you will be amazed at the places you can go. Find the look you are after with various Cerakote colour options, making your bike truly unique, setting you apart from your fellow two-wheeled comrades. The Simpatico N1 titanium bikes are the ultimate choice for taking your gravel riding experience to the next level.

SKU: N/A Categories: ,

Description

KEY FEATURES

Fully-internal Frame and fork cabling

Titanium  Frame Grade 9 Ti-3AI-2.5v

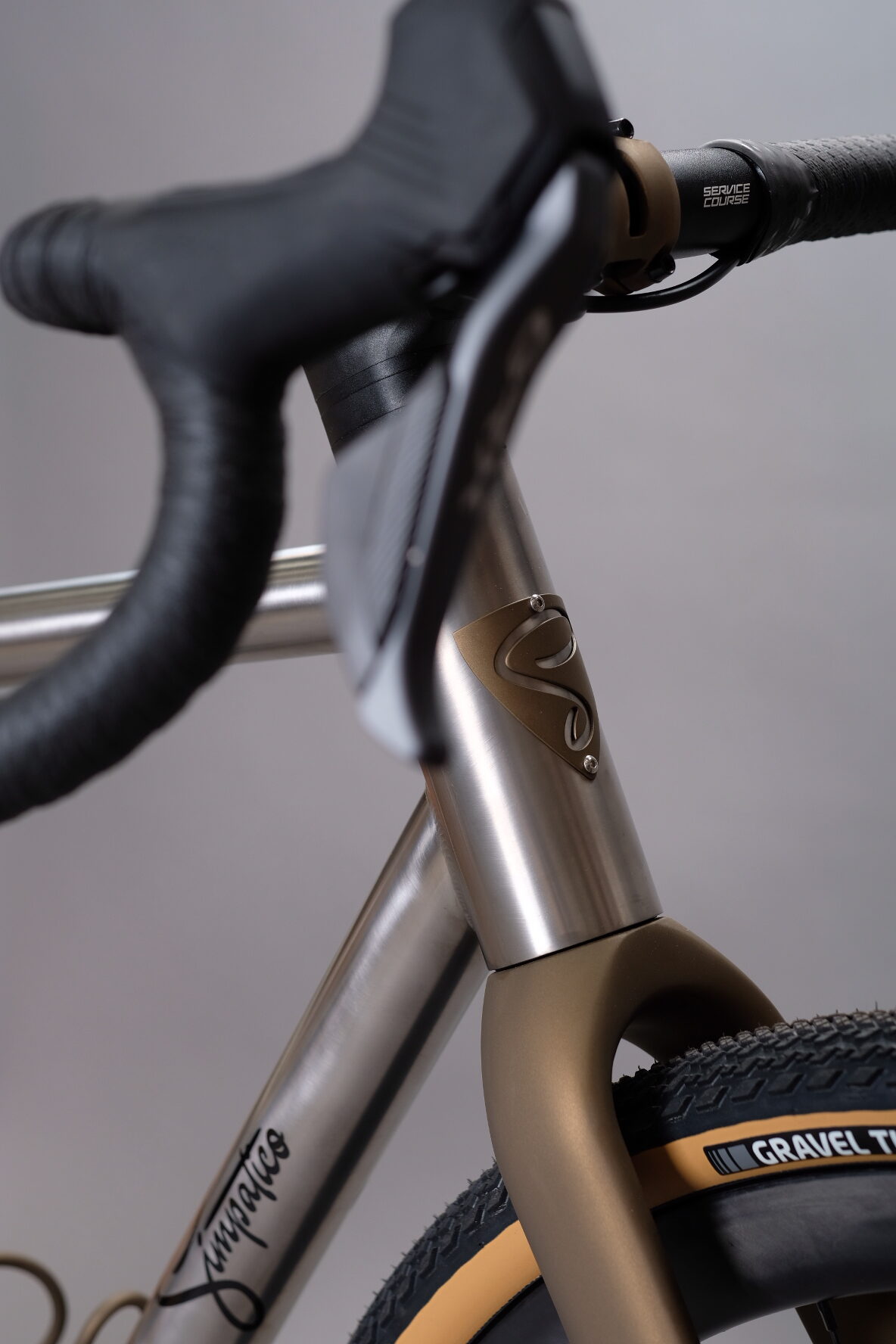

Integrated Headset with full internal cabling for a slick look, easy cleaning, and easy bag mounting

Semi Integrated Stem for easy cockpit adjustments

T47 threaded Bottom Bracket for silent operation and unlimited options for future crankset upgrades

UDH Derailleur for universal compatibility, SRAM Transmission and Full-mount Compatible

27.2mm seat tube for comfort

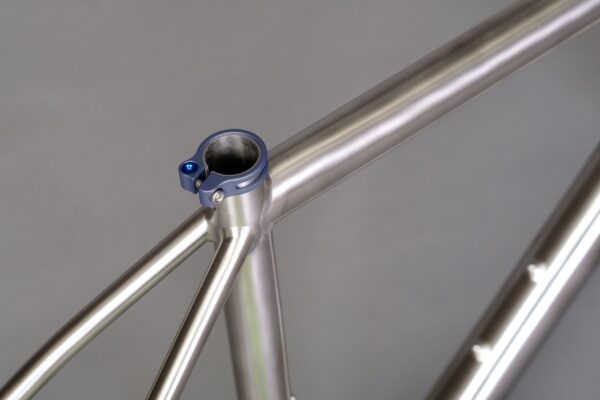

Standard Allen key seat clamp for rock solid seat post setup

CERAKOTE Options

Standard (included)

Our standard frame chassis includes a colour matched fork, stem, seatpost, downtube logos, and headbadge. All in one Cerakote colour.

Upgrade ($1200 extra)

Our upgraded Cerakote package has the frame coated, with the chainstays and seatstays left in a brushed Titanium finish.

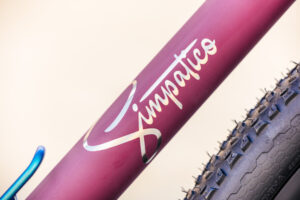

The downtube logos are masked out to show through as brushed titanium, and the headtube logo is a matching brushed Titanium finish.

The wheels receive a hub upgrade to a contrasting cerakote colour of your choice,, and as a bonus, they also weigh 80g less.

The seatpost clamp is Cerakoted in the same contrasting colour as the wheel hubs

The stem can be matched to the either frame, or to the hub colour.



SPECIFICATIONS

RIVAL AXS BUILD SPECS

SIZES 52, 54, 56, 58
Geometry chart
FORKNvisage Monda All-Carbon, Tapered Fork with internal cabling. 700 x 50 tyre capacity, triple boss mounts, with colour matched Cerakote
HEADSETTOKEN C-BOX Headset  IS52/28.6/IS52/40
THRU AXLESNVISAGE Aero Thru-Axles, 12×100/142
WHEELSNVISAGE 40/40 or 45/45
TIRES

TUFO Thundero 700x 44 or

TUFO Thundero HD 700x 48

CRANKSET

SRAM Rival

1 x D1 DUB wide Direct Mount 44T (other size chainrings available)

BOTTOM BRACKETToken BB47V29 86mm internal for DUB
CHAINSRAM T-Type
FRONT DERAILLEURNA
REAR DERAILLEURSRAM REAR DERAILLEUR 12SPD GX Transmission
CASSETTESRAM  GX Transmission 12 speed
SHIFTERSSRAM RIVAL AXS  D1, 12 speed
HANDLEBARNVISAGE  Otway Alloy, 31.8mm clamp
STEMNVISAGE Densley  Semi Integrated Alloy with Colour matched Cerakote
BRAKE CALIPERSSRAM Rival Flatmount

SADDLESelle Repente Quasar
SEATPOSTNVISAGE Acheron 350mm 27.2 Carbon
BRAKE ROTORNVISAGE 160mm Centerlock in matching Cerakote

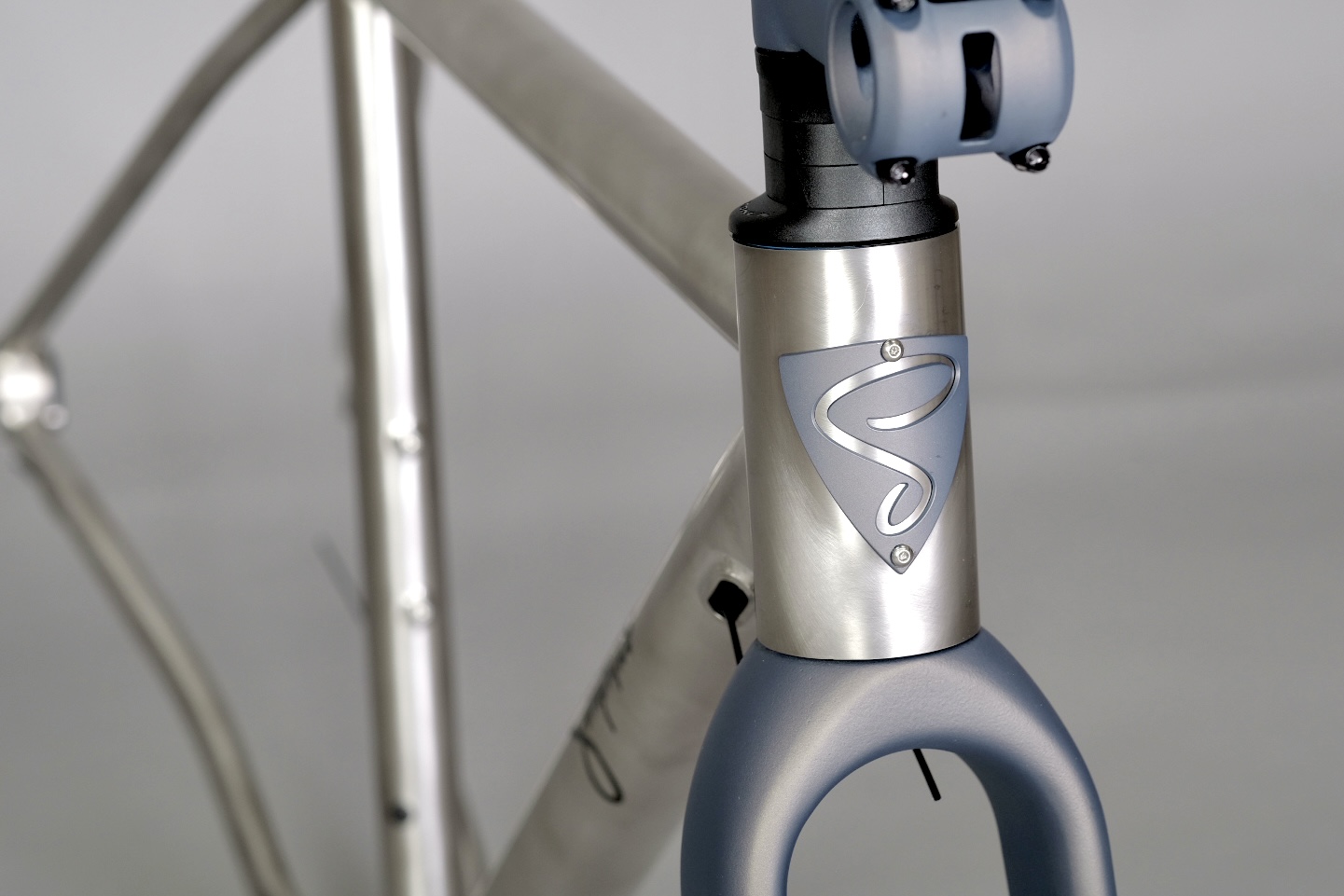

ACCESSORIESSimpatico Titanium brushed Headbadge

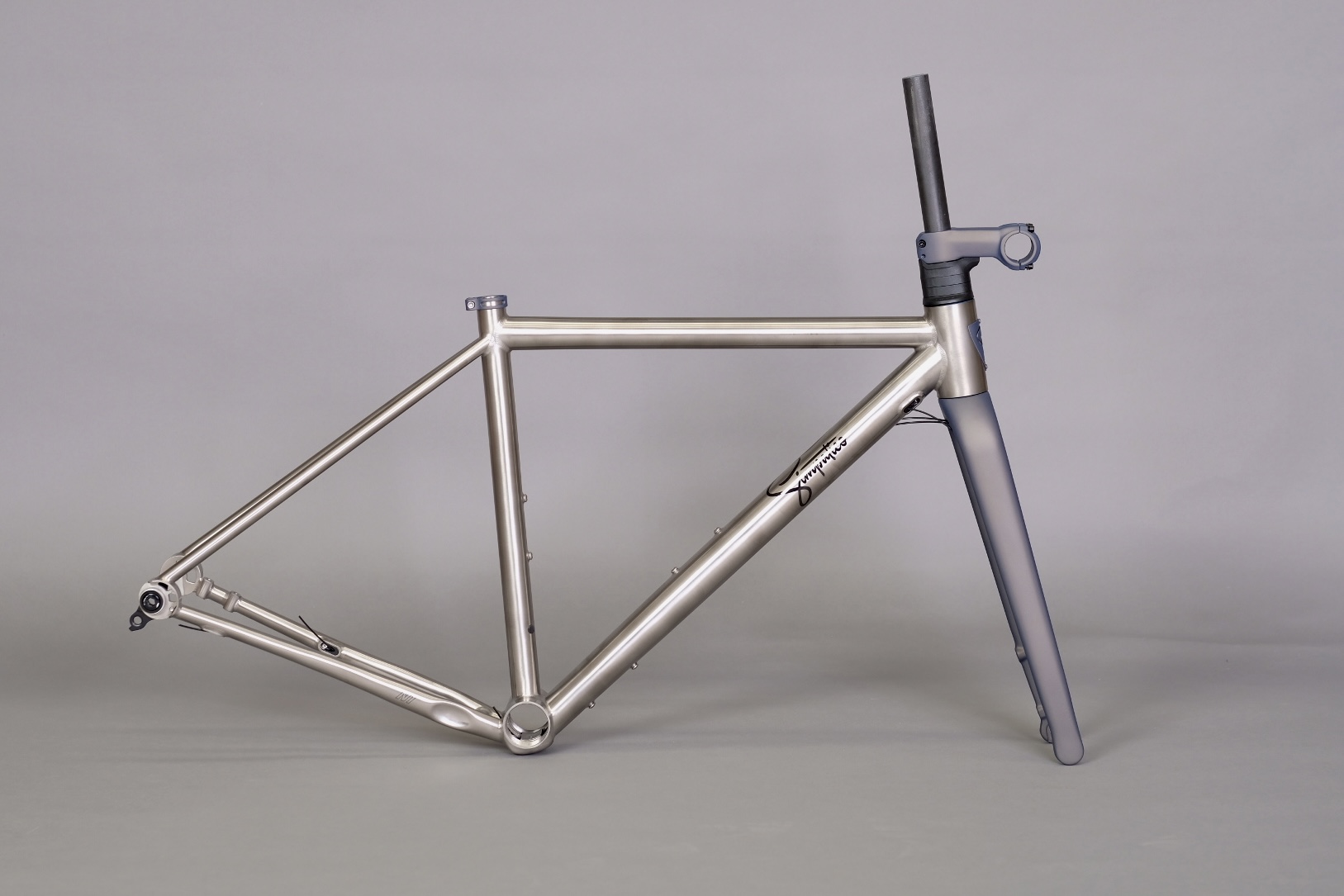

FRAME

Titanium Grade 9 Ti-3AI-2.5v

Chassis

Additional information

Size

49, 52, 54, 56, 58
Groupset Type

SRAM Force D1 AXS/GX Eagle Transmission mullet 1x $9499, Shimano GRX 825 Di2 2×12 $9499, SRAM Force D1 AXS/ XX Eagle Transmission mullet 1x $10,299, SRAM Red E1 XPLR 1x 13 speed $13,599, Other POA
Frame & Cockpit Finish

Brushed Frame Bronze Cockpit, Brushed Frame Naarm Blue Cockpit, Brushed Frame Black Cherry Red cockpit, Brushed Frame custom coloured Cockpit +$300, Black Cherry Red frame Copper cockpit +$1000, Bronze frame Copper Cockpit +$1000, Naarm blue Frame Bronze Cockpit +$1000, Custom Colours Frame and Cockpit +$1500
Wheels

Zipp 303 S wheels, Zipp 303 XPLR S wheels, NVISAGE AR45 carbon wheels with DT350 hubs +$500, NVISAGE AR45 carbon wheels cerakote hubs +500, Zipp 303 XPLR SW wheels +$1000, Zipp 303 Firecrest +$1000
Fork Type

NVISAGE Race fork (no bosses), NVISAGE Adventure fork (3 bosses), ENVE Gravel in route fork (3 bosses) +$500
