An endurance road bike used to mean a road bike with a taller front end and room for 28 mm tires. That has changed. Riders now run 32, 35 and even 40 mm tires on the road, and the bikes and wheels are catching up. This guide covers why wider tires suit endurance riding, what to look for in a frame and wheels, and how our N1 is set up for it.
What is an endurance road bike?
An endurance road bike is built for long days. The position is more upright than a race bike, the handling is steadier, and there is more room for tires. It suits riders who want to cover distance comfortably, ride rough country roads, and still keep up on a fast group ride.
Tire width is where the category has moved most. Clearance for 28 mm tires was generous a few years ago. Today a good endurance frame should take 35 mm tires with room to spare, and 40 mm is becoming common.
Why wider tires suit endurance riding
A wider tire holds more air, so you can run it at a lower pressure for the same load. Lower pressure lets the tire soak up chip seal, cracks and broken edges instead of passing them into your hands and seat. On real roads, that usually means less vibration and less time spent bouncing off the surface.
Wider tires also give you more grip in the wet and more margin on gravel connectors, which makes longer and more varied routes easy to plan. The tradeoff is a little more weight, and on very smooth tarmac a narrow, hard tire can still feel quicker. For most riders on most roads, a 32 to 38 mm tire at the right pressure is a comfortable and fast choice.
Our bike tire size guide explains how to choose a width, and the tire pressure guide covers how pressure changes with width.
What to look for in an endurance road frame
- Tire clearance with room left over. If you want to run 38 mm road tires, look for a frame that takes more than that.
- A position you can hold for hours. Compare stack and reach with a bike you already ride well; our sizing guide shows how.
- Handling that stays calm when you are tired, without feeling slow in corners.
- Mounts for bottles and mudguards if you ride through winter or on long unsupported days.
Wide rims for wide road tires
Wide tires work best on rims that are wide enough to support them. A rim that is too narrow for the tire lets the sidewalls fold under load and gives the tire a light-bulb shape that catches more air. A wider rim gives the tire a straighter sidewall, a more stable feel in corners and a smoother shape for the air to flow over.

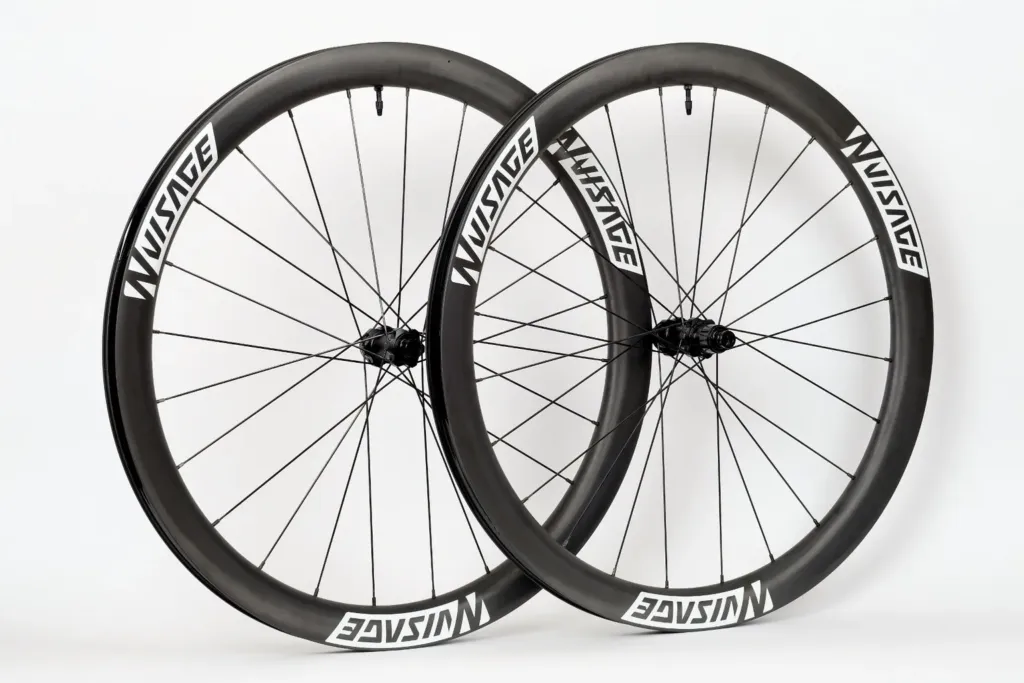

That is why our Nvisage road wheels are wider than a traditional road rim. The AR45 has a 45 mm deep rim with a 29 mm internal width and suits 32 to 40 mm road tires. The AR65 is 60 mm deep at the front and 65 mm at the rear, with a 32 mm internal width, and suits 35 to 40 mm road tires. Both are hooked rims. Deep rims help at speed, and the width keeps the rim matched to the tire you actually ride.

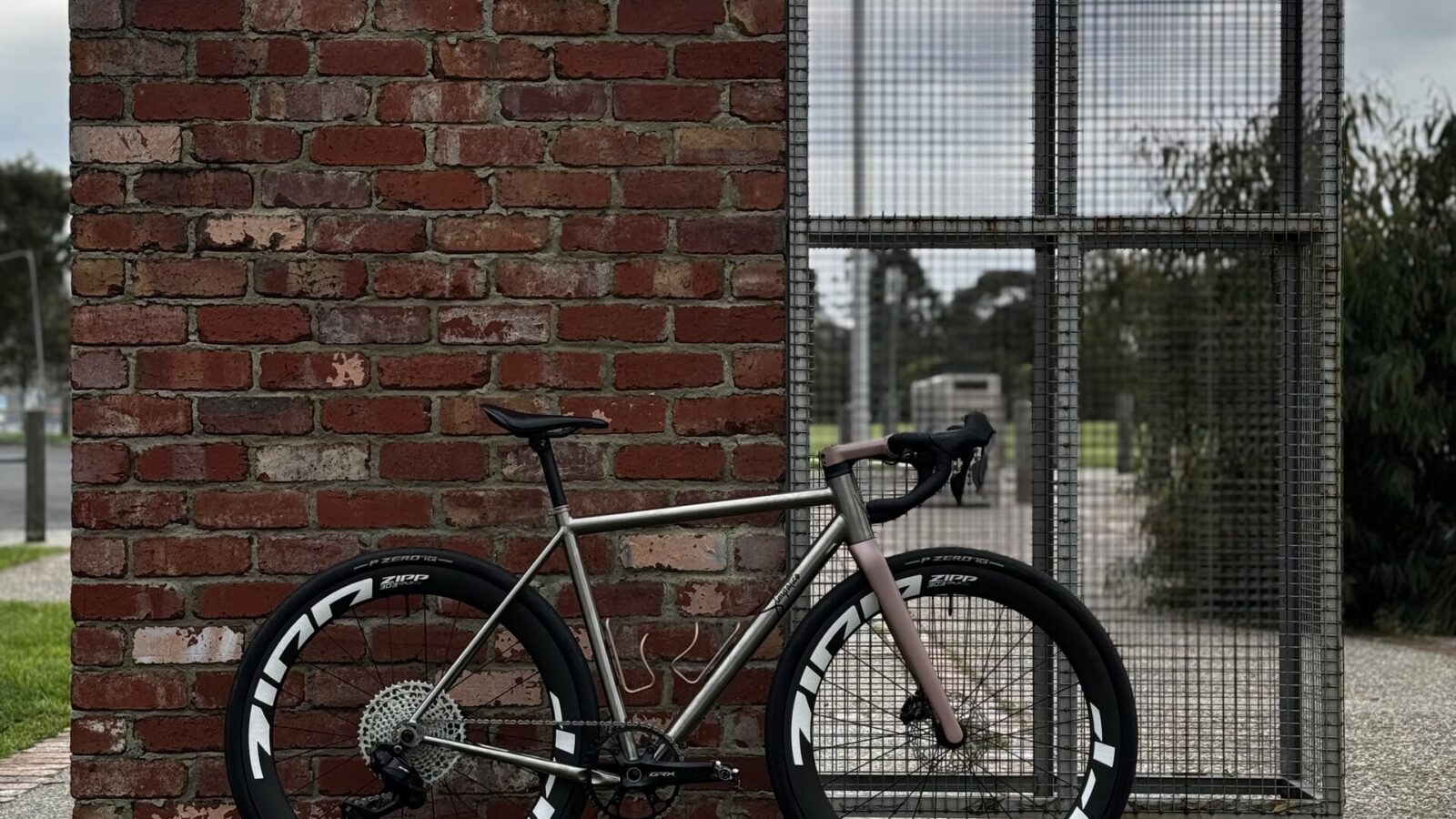

The N1 as a titanium endurance road bike
Our N1 is a titanium all-road bike with road-bike geometry and room for wide tires. It runs road tires from 28 mm and clears up to 45 mm with a 2x drivetrain or 48 mm with 1x. In a size 56 it has 580 mm of stack, 398 mm of reach and a 1,038 mm wheelbase, so it rides like a road bike.
| Setup | Tires | Suits |
|---|---|---|
| N1 + AR45 | 32 to 38 mm road | Fast group rides, long days on mixed-quality roads |
| N1 + AR65 | 35 to 40 mm road | Rough country roads at speed, with deeper rims for flat and rolling routes |
| N1 + AR45 | 40 to 48 mm gravel | Hardpack gravel, road rides with gravel sections, and light touring |
Complete N1 builds come on AR65 wheels as standard, and you can choose the AR45 when you configure yours. With gravel tires fitted, it is a gravel bike in its own right on hardpack or smooth dirt. A 2x drivetrain still takes 45 mm gravel tires and 1x takes 48 mm, so you don’t have to give up road gearing.
If you are deciding between an endurance road bike and a gravel bike, our comparison of gravel bikes vs road bikes covers the differences. The titanium road bike frame guide explains why titanium suits a bike you plan to keep for a long time.
